Radio Frequency (RF) antennas enable everything from smartphone connectivity to satellite transmissions. Early antennas were rudimentary, often large and unwieldy, but they laid the foundation for the extremely compact antennas used in today's wireless communications. Their development has been a cornerstone in the telecommunications industry, reflecting advancements in technology and shifts in societal needs.
Historical Development of RF Antennas
The inception of RF antennas dates back to the late 19th century with pioneers like Heinrich Hertz, who demonstrated the existence of electromagnetic waves, and Guglielmo Marconi, who capitalized on this discovery to transmit signals over long distances.
As the 20th century progressed, the demand for more efficient communication systems grew, spurred by events like World War II and the Space Race. This period saw significant innovations such as the Yagi-Uda antenna, developed in Japan in 1926, which became instrumental for television broadcasting and radar systems. The advent of microstrip antennas in the 1970s, thanks to advancements in printed circuit technology, marked a pivotal shift towards miniaturization and integration into compact devices.
How RF Antennas Work
RF antennas function by converting electrical power into radio waves (transmitting) and radio waves back into electrical power (receiving). This process relies on the oscillation of electrons within the antenna structure, which generates electromagnetic fields that propagate through space. Key factors influencing antenna performance include frequency, wavelength, polarization, and radiation pattern. These factors determine an antenna’s parameters, such as gain and bandwidth, which in turn dictate the antenna's performance.
• Gain: A key factor in antenna technology, gain refers to an antenna's ability to focus energy more effectively in a particular direction than in other directions, thus increasing the effective signal strength in that specific direction. The higher the gain, the more focused the antenna's beamwidth, meaning the signal is more narrowly directed. A high-gain antenna can send or receive signals over greater distances, making it ideal for specific applications such as satellite communications, radar systems, and long-distance radio broadcasting.
• Frequency and Wavelength: Antennas are designed to operate at specific frequencies, corresponding to the wavelength of the radio waves they emit or receive. The physical size of an antenna is directly related to the wavelength of the frequency it is designed to transmit or receive. Generally, the length of an antenna is a proportion of the wavelength of the signal. For example, half-wave dipole antennas are typically half the length of the wavelength they are intended to use. So, an antenna designed for a 300 MHz frequency, which corresponds to a 1-meter wavelength, would be about 0.5 meters long.
Thus, a 5G phone operating at 1 GHz would likely have an antenna around 7.5 centimeters long if using a quarter-wave design. However, actual antenna sizes can be further reduced using advanced antenna design techniques such as meandered lines, loops, or other miniaturized designs that allow the antenna to remain effective at its operating frequency while fitting into the compact body of a smartphone.
• Polarization: This refers to the orientation of the electric field of the radio wave relative to the Earth's surface. The most common forms or polarization are vertical and horizontal in relation to the Earth’s surface. Different polarizations can behave differently in terms of penetrating various materials or traveling through different environmental conditions. For example, vertically polarized waves might penetrate foliage and certain building materials differently than horizontally polarized waves, affecting signal reception indoors or in forested areas.
• Radiation Pattern: The radiation pattern of an antenna defines the shape and directionality of the radiated fields from the antenna. Different types and shapes of antennas produce different radiation patterns.
Different Types of RF Antennas and Their Applications
RF antennas come in various shapes and sizes, and are designed with specific goals, such as maximizing signal strength, reducing interference, and supporting multiple frequency bands.
1. Dipole Antennas
• Design: Consist of two conductive elements (poles) and are the simplest and most widely used antennas.
• Applications: Radio and television broadcasting, amateur radio.
• Benefits: Simple design, omnidirectional radiation pattern, wide bandwidth, low cost, easy to construct.
2. Monopole Antennas
• Design: Similar to dipole antennas but use a ground plane as a reflective surface, effectively doubling the signal.
• Applications: Mobile phones, FM radio broadcasting.
• Benefits: Compact size, suitable for portable devices.
3. Yagi-Uda Antennas
• Design: A directional antenna with multiple elements for increased gain. Usually a single driven element and additional parasitic elements.
• Applications: Television reception, amateur radio.
• Benefits: High gain, directional focus, improved signal quality.
4. Patch (Microstrip) Antennas
• Design: Flat antennas that can be mounted on a flat surface, often fabricated using printed circuit boards.
• Applications: Common in smartphones, GPS devices, and Wi-Fi routers
• Benefits: Low profile, lightweight, easily integrated into electronic devices.

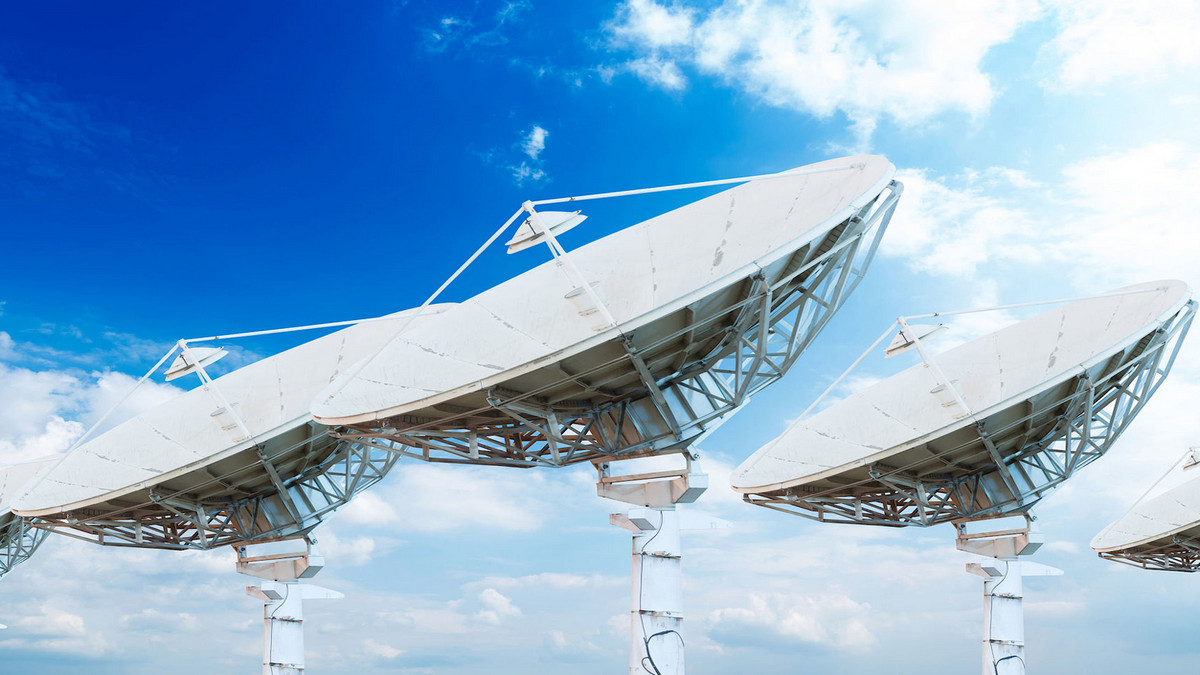

5. Parabolic Reflector Antennas
• Design: Use a parabolic dish to focus radio waves into a narrow beam.
• Applications: Satellite communication, radio telescopes, point-to-point data transmission, radar systems.
• Benefits: Very high gain, precise directional control.
6. Phased Array Antennas:
o Design: Comprising multiple antennas, phased arrays can electronically steer the direction of their beam by changing the phase of the signal at each antenna element.
o Applications: Essential in radar systems, 5G networks, and military applications.
o Benefits: Enhanced performance, adaptability, and reduced mechanical complexity.
Current Trends in RF Antenna Technology
5G networks require antennas capable of handling higher frequencies, such as millimeter waves. Massive MIMO (Multiple Input Multiple Output) technology uses large arrays of antennas to increase capacity and reduce latency in wireless networks.
The proliferation of IoT devices requires compact, energy-efficient antennas that can be embedded into a variety of products, from household appliances to industrial sensors. Smart antennas, incorporating adaptive algorithms and beamforming techniques, adjust their radiation patterns in real-time to optimize signal strength and reduce interference.
Flexible and wearable antennas in smartwatches, fitness trackers, and wearable health monitors conform to the human body, enabling wireless medical devices for telemedicine.
Global Manufacturing
The manufacturing of RF antennas is a specialized industry that combines advanced materials science with precision engineering. Innovations in materials such as metamaterials, nanotechnology, dielectrics, and advanced composites for specialized applications enable the production of smaller yet more efficient antennas. Production is concentrated in technologically advanced regions, including the United States, Europe, Japan, Taiwan, South Korea, and China.
Taiwan’s leadership in semiconductor manufacturing provides a robust foundation for producing high-quality RF components. Key manufacturers such as Moxa Inc. provide industrial networking products, including RF antennas designed for rugged industrial environments. Universal Microwave Technology Inc. manufactures advanced RF microwave components, including antennas, for telecommunications and satellite applications. Taiwanese companies are increasingly supplying antennas for global brands in mobile communications, automotive electronics, and aerospace sectors.
Future Outlooks of RF Antennas
While 5G is still being rolled out, research into 6G is already underway. This research requires antennas that operate at even higher frequencies (in the terahertz range) and support ultra-low latency communication. AI algorithms will enable smart antennas to dynamically adjust to their environment, optimizing performance without human intervention. The use of metamaterials—engineered structures with properties not found in nature—can lead to antennas with unprecedented capabilities, such as negative refractive indexes and superlensing, enabling the creation of smaller yet more efficient antennas.
