Gantry Machining Centers Evolved: How Vision Wide Is Shaping the Future of Smart Manufacturing

Gantry‑type Machining Center

The gantry-type machining center is a vital piece of equipment designed specifically for handling large workpieces. Structurally, it features a bridge-type frame supported by two vertical columns with a crossbeam on top. The spindle head is mounted on this crossbeam, forming a rigid, gate-like shape—hence the name “gantry.”

The earliest gantry machines date back to 1818, developed by the Whitney Company in the United States for cutting spiral grooves in drill bits. With the evolution of planer-type milling machines and the rise of CNC technology, gantry machining centers gradually transformed into the computer-controlled versions we see today, becoming widely adopted across heavy industries that demand high precision.

One of the most defining advantages of gantry-type machining centers is the structural rigidity and stability they offer, making them ideal for processing workpieces that weigh several tons and span several meters in length. When paired with a precisely calibrated CNC control system, these machines can achieve micrometer-level accuracy—perfect for manufacturing processes that require both stability and precision.

Moreover, gantry machines are known for their multifunctional capabilities. They can perform milling, drilling, boring, and tapping in a single setup, which makes them especially suitable for complex, multi-surface machining tasks that need to be completed in one go.

Thanks to these features, gantry-type machining centers play a critical role in modern manufacturing, particularly in fields such as aerospace, automotive mold making, and large-scale machinery production—where their machining value is simply irreplaceable.

Industry Applications and Benefits of Gantry-Type Machining Centers

Gantry-type machining centers are not only known for their rigid structure and high-precision capabilities—they also deliver outstanding performance across a wide range of critical industries. By enhancing production efficiency, reducing manufacturing costs, and improving product consistency, these machines bring real value to modern manufacturing.

• Aerospace and Large Structural Parts:

Gantry machines are capable of handling workpieces several meters in length, making them ideal for large-scale aerospace components. With advanced workholding systems, they can perform five-sided or even full 5-axis machining in a single setup. This significantly shortens processing time and avoids the dimensional errors caused by multiple repositionings.

• Automotive Molds and Body Structure Manufacturing:

In the automotive sector, gantry-type machines are widely used for producing large molds, chassis components, and engine hoods. Their superior rigidity, combined with high-precision CNC control, enables tight-tolerance machining with excellent repeatability. These machines also integrate multiple processes—such as drilling, milling, and tapping—into one setup, reducing cycle times and increasing both productivity and consistency.

• Energy, Shipbuilding, and Heavy Machinery Industries:

For massive parts like wind turbine housings, ship hull sections, or excavator components, gantry machining centers stand out thanks to their high load capacity and expansive work envelope. They can complete both roughing and finishing operations in one go, significantly boosting efficiency and dimensional stability.

• Tooling and Composite Material Machining:

These machines are also ideal for high-end applications such as plastic injection molds, composite structural components, and precision parts. Equipped with 5-axis or five-face capabilities and advanced surface finishing options, they deliver excellent surface quality and maintain consistent machining performance. This makes them perfect for complex geometries and high-specification design requirements.

Vision Wide

Vision Wide Tech Co., Ltd. was founded in 1999 and officially began operations in 2000. Guided by its core philosophy of “customer-oriented service and quality first,” the company has remained focused on the R&D, independent design, and manufacturing of high-precision gantry-type CNC machining centers. Its products are widely used in metalworking and composite material cutting applications. Thanks to its outstanding product quality and technical capabilities, Vision Wide has earned a reputation as one of the most trusted brands in the global machine tool industry.

Operating under its own brand name, Vision Wide, the company generates annual revenues exceeding NT$1 billion, with its products sold across China, India, South Korea, Europe, the United States, Australia, and beyond—demonstrating strong international competitiveness.

Vision Wide embraces the brand philosophy of “Solution, Satisfaction, Smile (SSC),” which reflects the company’s broad vision, customer satisfaction focus, and positive values. With a strong emphasis on sustainable development and corporate social responsibility, Vision Wide builds its corporate culture on the principles of “Truth-Seeking, Innovation, and Sharing.” The company is not only committed to product innovation but also to building a sustainable future in partnership with its employees, customers, and the broader community.

Robust Product Performance

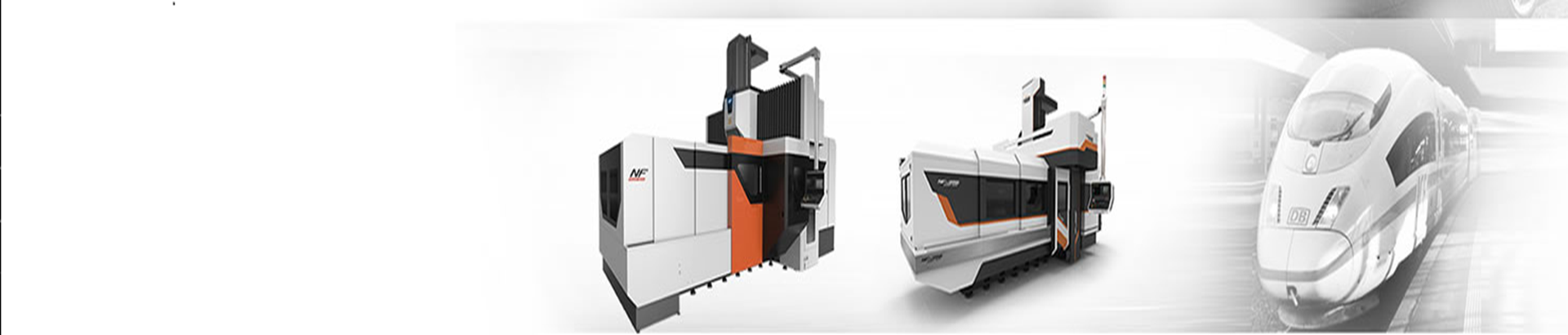

Vision Wide’s gantry-type machining centers are built with a rigid and stable structural design, combined with flexible and versatile automatic tool changing systems. This powerful combination significantly boosts overall machining efficiency. The machines truly shine when it comes to high-precision machining of large workpieces and molds, delivering exceptional performance and reliability. They are the ideal solution for heavy-duty, high-accuracy machining tasks.

A New Green Facility and Vision for Smart Manufacturing

In March 2023, Vision Wide held the groundbreaking ceremony for its Phase II facility in Caotun, Nantou. The new plant spans 2,300 ping (approximately 7,600 square meters) and embraces green building concepts—including energy-efficient insulation, a fully automated factory-wide temperature control system maintaining a ±1°C range, and solar power installations. These features reflect the company’s strong commitment to energy conservation, carbon reduction, and environmental responsibility.

This expansion not only significantly boosts overall production capacity but also marks a major milestone for Vision Wide as it steps into a new era of smart manufacturing. By integrating the Internet of Things (IoT) and Manufacturing Execution Systems (MES), the company aims to achieve more precise machine scheduling and real-time quality control. This paves the way for a fully digital, open manufacturing platform—enhancing competitiveness and expanding Vision Wide’s global presence.

Envisioning the Future of Smart Manufacturing

The gantry-type CNC machining center features a bridge-style double-column and crossbeam structure, offering exceptional cutting rigidity and structural stability. It supports micrometer-level precision and integrates multiple machining processes. Whether it’s milling, drilling, tapping, or boring, all operations can be efficiently completed on a single machine.

Equipped with automatic tool changers, 5-axis simultaneous control, and multifunctional operation, gantry machines are key tools for completing multi-surface machining in one setup. They are especially well-suited for industries such as aerospace, automotive, large mold manufacturing, and composite structural components.

Thanks to its high-rigidity structure and modular automation systems, the gantry machine excels at improving overall process efficiency, preventing cumulative errors, and shortening machining cycles. For manufacturers working with large, tight-tolerance workpieces, this represents not only an evolution in equipment performance but also a core driver for manufacturing process optimization.

Considering its structural design and functional capabilities, the gantry machining center is far more than just a single tool—it is a highly strategic manufacturing asset that lays a solid foundation for production line upgrades and smart manufacturing.
